VAN-115/230AC-K16 - PF 129377 - AS-Interface power supply
VAN-115/230AC-K16 - PF 129377 - AS-Interface power supply
Regular price
$1,100.14 NZD
Regular price
Sale price
$1,100.14 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

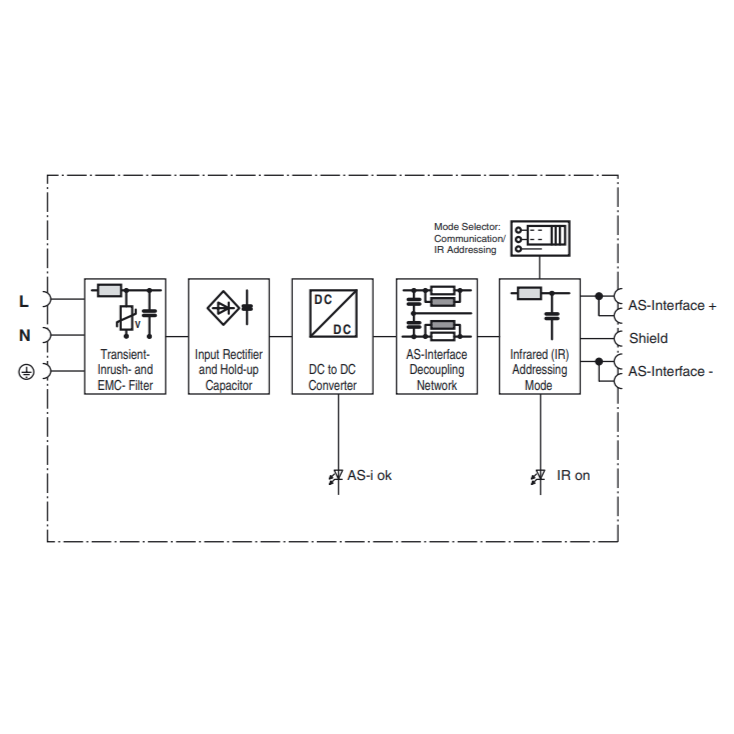

AS-Interface power supply, VAN-115/230AC-K16 - PF 129377
- AS-Interface certificate
- PELV/SELV
- LED operating display
- 8 A output load
- 115 V AC / 230 V AC switchable
- AS-Interface data decoupling
- Overload protection using FUSE mode
Details: VAN-115/230AC-K16 - PF 129377
AS-Interface power supply, data decoupling, 8 A
Compatible Part Numbers:
129377
VAN-115/230AC-K16
Technical Datasheet:
Datasheet excerpt: Technical data of VAN-115/230AC-K16 - PF 129377
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| MTBF | 100 a | |
| Indicators/operating means | ||
| Reset push-button switch | FUSE mode reset | |
| Power selection switch | changeover switch for 115 V AC/230 V AC | |
| LED Overload | red LED, flashes in the FUSE mode | |
| LED IR on | red LED: ON: Plug-in jumper position 2-3 OFF: Plug-in jumper position 1-2 |
|
| Plug-in jumper | Position 1-2: Communication Mode Position 2-3: IR addressing |
|
| LED AS-i ok | operating display; LED green | |
| Electrical specifications | ||
| Fusing | T8A/250 V AC HBC (not accessible) | |
| Capacity factor | > 0.5 | |
| Rated operating voltage | nominal: 100 ... 120 V AC/220 ... 240 V AC (front end selectable) permissible: 85 ... 132 V AC/184 ... 264 V AC/230 ... 375 V DC |
|
| Rated operating current | 6,0 A (Switch position 115 V) 2.8 A (Switch position 230 V) |
|
| Supply frequency | 47 ... 63 Hz or DC | |
| Efficiency | typ. 92 % (at 230 V AC/8 A) | |
| Surge protection | limited to max. 55 V | |
| Output | ||
| Short-circuit protection/overload | FUSE Mode (2 ... 5 s current, then trips) | |
| Current limit | > 8.4 A | |
| Voltage | 30.55 V DC ± 3 % | |
| Current | 8 A | |
| Galvanic isolation | overvoltage category III | |
| Residual ripple | ≤ 50 mVss (500 kHz bandwidth, 50-Ω-measurement with ohmic load) | |
| Short-circuit current | 12 ... 25 A (max. 5 s) | |
| Standard conformity | ||
| Electromagnetic compatibility | emitted interference in accordance with EN 50081-2 class B (EN 55011, EN 55022) noise immunity in accordance with EN 61000-6-2, EN 61000-4-2 to EN 61000-4-6, EN 61000-4-11 |
|
| Ambient conditions | ||
| Ambient temperature | -10 ... 70 °C (14 ... 158 °F) (Measured 25 mm below the device) from 60° C 6W/°C power recovery necessary |
|
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP20 according to EN 60529 | |
| Protection class | 1 (IEC 60536); Protective conductor connection necessary | |
| Connection | Connection terminals, max. conductor cross-section flexible: 0.5 ... 4 mm2 fixed: 0.5 ... 6 mm2 stripped length 7 mm, connector sleeves are permissible |
|
| Material | ||
| Housing | metal | |
| Mass | approx. 890 g | |
| Dimensions | ||
| Height | 124 mm | |
| Width | 91 mm | |
| Length | 102 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 6.0 | EC002540 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121004 |
