VAZ-2FK-G10-BRIDGE / PF 216026 - AS-Interface splitter box
VAZ-2FK-G10-BRIDGE / PF 216026 - AS-Interface splitter box
Regular price
$58.80 NZD
Regular price
Sale price
$58.80 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

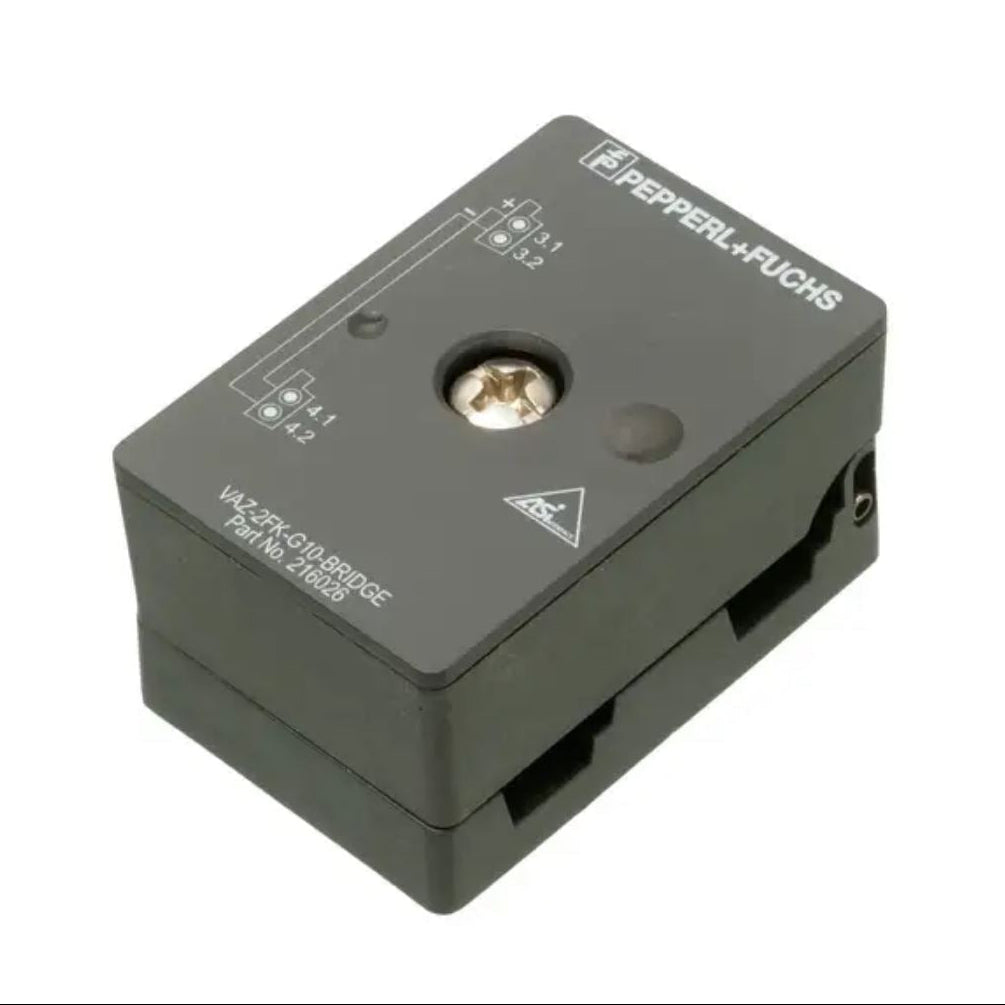

AS-Interface splitter box, VAZ-2FK-G10-BRIDGE / PF 216026
- One piece housing
- Simple and fast mounting
- High current rating
- Gold-plated and machined contacts
- Degree of protection IP68 / IP69K
Details: VAZ-2FK-G10-BRIDGE / PF 216026

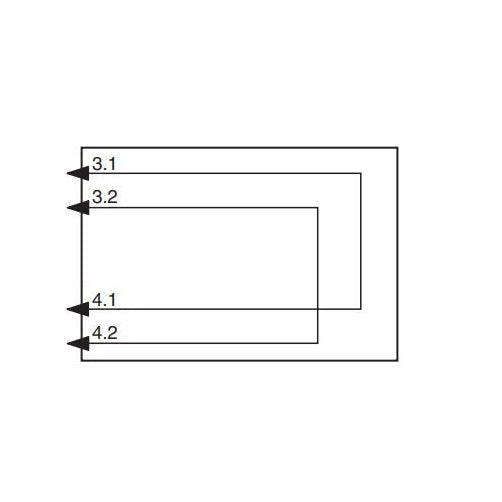

Splitter box G10, flat cable to flat cable
Compatible Part Numbers:
216026
VAZ-2FK-G10-BRIDGE
Technical Datasheet:
Technical data of VAZ-2FK-G10-BRIDGE / PF 216026
|
General Specifications
|
|
| Construction type |
Flat cable terminals
|
|
Electrical specifications
|
|
| Rated operating voltage | Ue ≤ 60 V PELV |
| Rated operating current | Ie ≤ 8 A |
| Protection class | III |
| Current loading capacity |
12 A with a wire cross section of 2.5 mm2
|
| Surge protection |
overvoltage category III
|
|
Compliance with standards and directives
|
|
|
Standard conformity
|
|
| Degree of protection | EN 60529:2000 |
|
Approval and certificates
|
|
| UL approval |
cULus Listed, Type 1 enclosure
|
| Application |
for use in NFPA 79 applications
|
| Maximum permissible operating voltage | max. 32 V |
| UL File Number | E223772 |
|
Ambient conditions
|
|
| Ambient temperature |
-25 ... 75 °C (-13 ... 167 °F)
|
| Storage temperature |
-25 ... 85 °C (-13 ... 185 °F)
|
| Pollution degree | 3 |
|
Mechanical specifications
|
|
| Degree of protection |
IP67
IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* |
| Connection |
Flat cable: cable piercing method
|
| Material | |
| Contacts | CuSn / Au |
| Housing | PBT PC |
| Mounting screw | Stainless steel 1.4305 / AISI 303 |
| Mass | 40g |
| Tightening torque, fastening screws | 1.65 Nm |
| Dimensions | |
| Height | 22 mm |
| Width | 27.7 mm |
| Length | 40.5 mm |
Classifications
| System | Classcode |
| ECLASS 5.1 | 27279201 |
| ECLASS 8.0 | 27279219 |
| ECLASS 9.0 | 27440108 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 13.0 | 27440111 |
| ETIM 5.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 9.0 | EC003558 |
| UNSPSC 12.1 | 31261501 |
