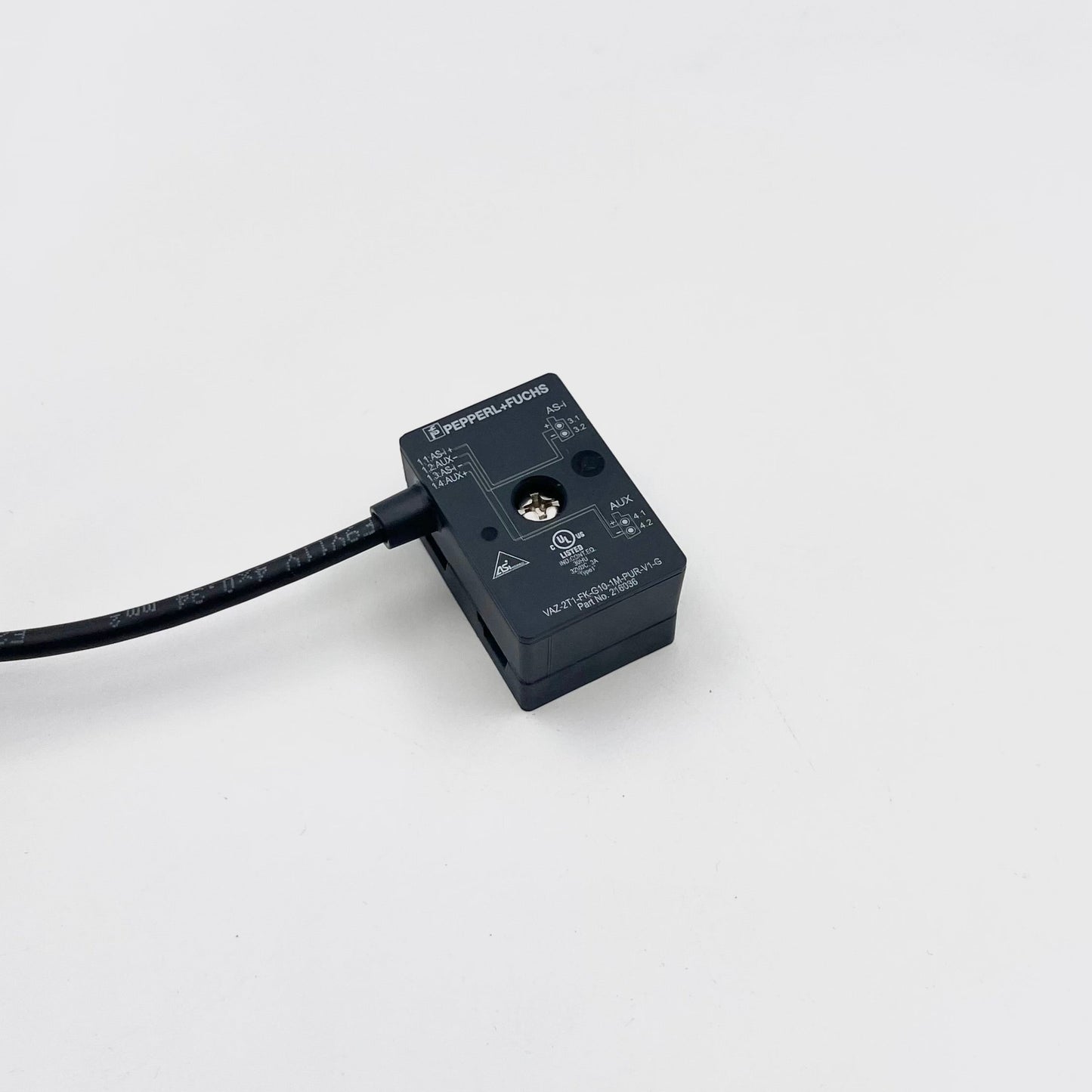

VAZ-2T1-FK-G10-1M-PUR-V1-G / PF 216036 - AS-Interface splitter box
VAZ-2T1-FK-G10-1M-PUR-V1-G / PF 216036 - AS-Interface splitter box
Regular price
$84.87 NZD
Regular price
Sale price
$84.87 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
AS-Interface splitter box, VAZ-2T1-FK-G10-1M-PUR-V1-G / PF 216036
- One piece housing
- Simple and fast mounting
- Gold-plated and machined contacts
- Oil and abrasion resistant PUR line appropriate for drag chains
- Immunity to vibration
- Degree of protection IP68 / IP69K
- Halogen-free
Details: VAZ-2T1-FK-G10-1M-PUR-V1-G / PF 216036
Splitter box G10, AS-Interface and auxiliary voltage to 1 x M12 round connector
Compatible Part Numbers:
VAZ-2T1-FK-G10-1M-PUR-V1-G
216036
Technical Datasheet:
Datasheet excerpt: Technical data of VAZ-2T1-FK-G10-1M-PUR-V1-G / PF 216036
| General specifications | ||
|---|---|---|
| Construction type | Socket, straight Flat cable terminals AS-Interface/ext. auxiliary voltage |
|
| Electrical specifications | ||
| Rated operating voltage | ≤ 60 V PELV | |
| Rated operating current | ≤ 3 A AS-Interface, ≤ 3 A AUX | |
| Protection class | III | |
| Current loading capacity | max. 4 A | |
| Surge protection | overvoltage category III | |
| Pulse withstand voltage | 800 V | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Type 1 enclosure | |
| Application | for use in NFPA 79 applications | |
| Maximum permissible operating voltage | max. 32 V | |
| UL File Number | E223772 | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 75 °C (-13 ... 167 °F) | |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* |
|
| Connection | Flat cable AS-Interface: cable piercing method Flat cable ext. auxiliary voltage UAUX: Insulation penetration technology Plug connection: M12 x 1 socket (V1) |
|
| Material | ||
| Contacts | CuSn / Au | |
| Housing | PBT PC | |
| Body | PUR, black | |
| Cable | PUR | |
| Mounting screw | Stainless steel 1.4305 / AISI 303 | |
| Cable | ||
| Sheath diameter | ∅4,3 mm | |
| Color | black | |
| Cores | 4 x 0.34 mm2 | |
| Length | 1 m | |
| Mass | 75 g | |
| Tightening torque, fastening screws | 1.65 Nm | |
| Dimensions | ||
| Height | 22 mm | |
| Width | 27.7 mm | |
| Length | 40.5 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440111 |
| ECLASS 12.0 | 27440111 |
| ECLASS 11.0 | 27440111 |
| ECLASS 10.0.1 | 27440111 |
| ECLASS 9.0 | 27440108 |
| ECLASS 8.0 | 27279219 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 7.0 | EC003558 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31261501 |
4 in stock
