VBA-4A-70MM / PF 275874 - AS-Interface stack light module

Name: VBA-4A-70MM / PF 275874 - AS-Interface stack light module
Brand: Pepperl Fuchs
Price: 351.59 NZD
Availability: InStock

$351.59 NZD

Sale Sold out

Shipping calculated at checkout.

Price (exc. GST) each

Product variants

Quantity

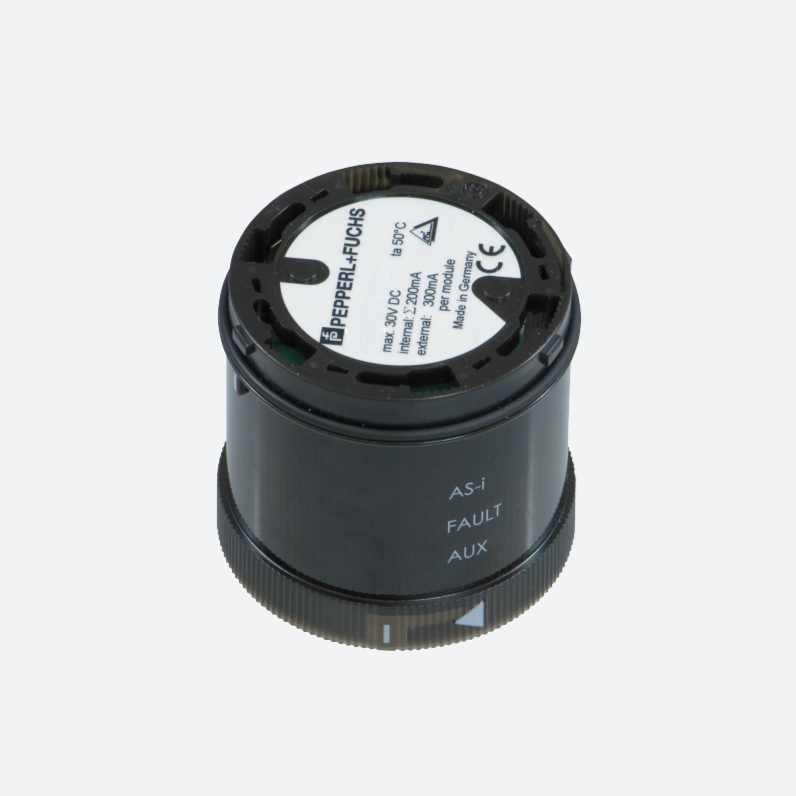

AS-Interface stack light module, VBA-4A-70MM / PF 275874

Details: VBA-4A-70MM / PF 275874

AS-Interface module for stack light

Comatible Part Numbers:

275874

VBA-4A-70MM

Technical Datasheet:

Datasheet excerpt: Technical data of VBA-4A-70MM / PF 275874

General specifications
Node type		A/B node
AS-Interface specification		V3.0
Required gateway specification		≥ V3.0
Profile		S-7.A.7
	IO code	7
	ID code	A
UL File Number		E223176
Functional safety related parameters
MTTF_d		300 a
Indicators/operating means
LED FAULT		communication error / address is 0; LED red
LED AS-i		AS-Interface voltage; LED green
LED AUX		ext. auxiliary voltage U_AUX; LED green
Electrical specifications
Auxiliary voltage (output)		20 ... 30 V DC PELV
Rated operating voltage		26.5 ... 31.6 V from AS-Interface
Rated operating current		≤ 235 mA
Output
Number/Type		4 semiconductor relay outputs

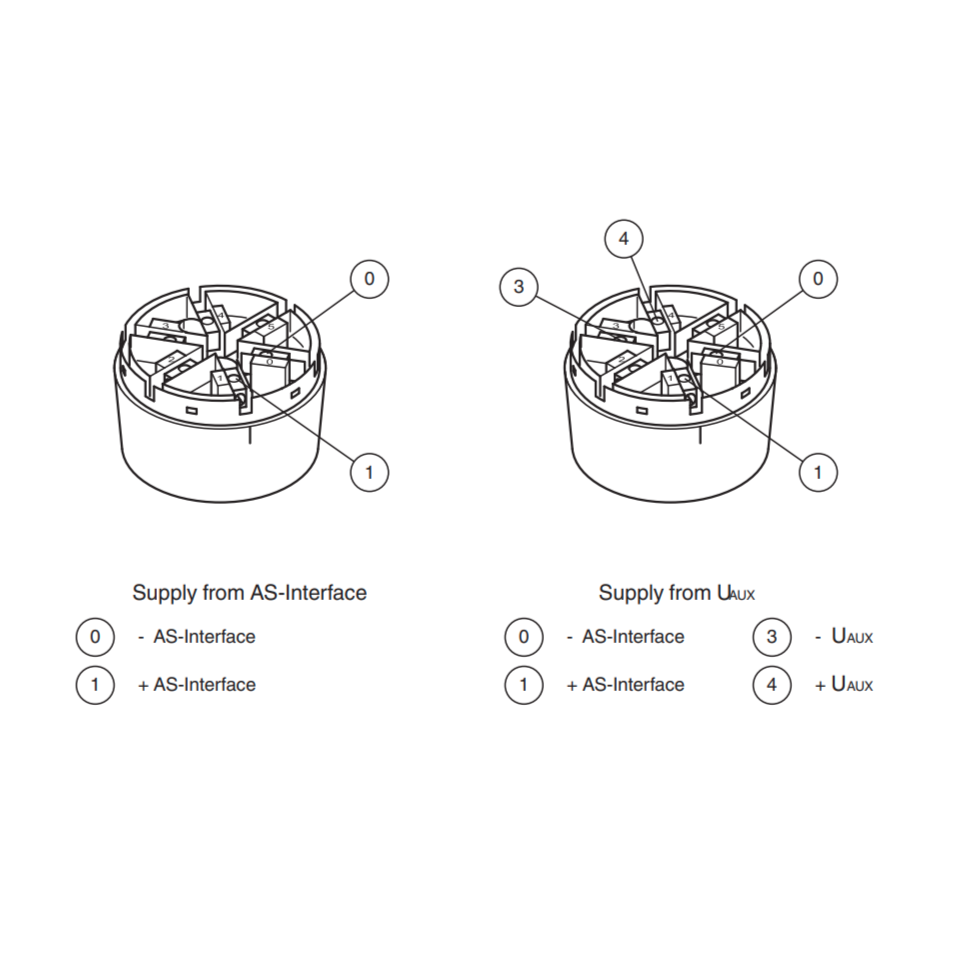

Supply		from AS-Interface or from external auxiliary voltage as required U_AUX
Voltage		21 ... 31 V
Current		AS-interface: ≤ 200 mA for the stack light U_AUX: ≤ 300 mA per light element
Ambient conditions
Ambient temperature		-20 ... 50 °C (-4 ... 122 °F)
Mechanical specifications
Degree of protection		IP65
Connection		Bayonet system
Dimensions
	Height	70 mm
	Diameter	70 mm

Classifications
