VBA-LT2-G1 / PF 180321 - AS-Interface module

Name: VBA-LT2-G1 / PF 180321 - AS-Interface module
Brand: Pepperl Fuchs
Price: 480.67 NZD
Availability: InStock

$480.67 NZD

Sale Sold out

Shipping calculated at checkout.

Price (exc. GST) each

Product variants

Quantity

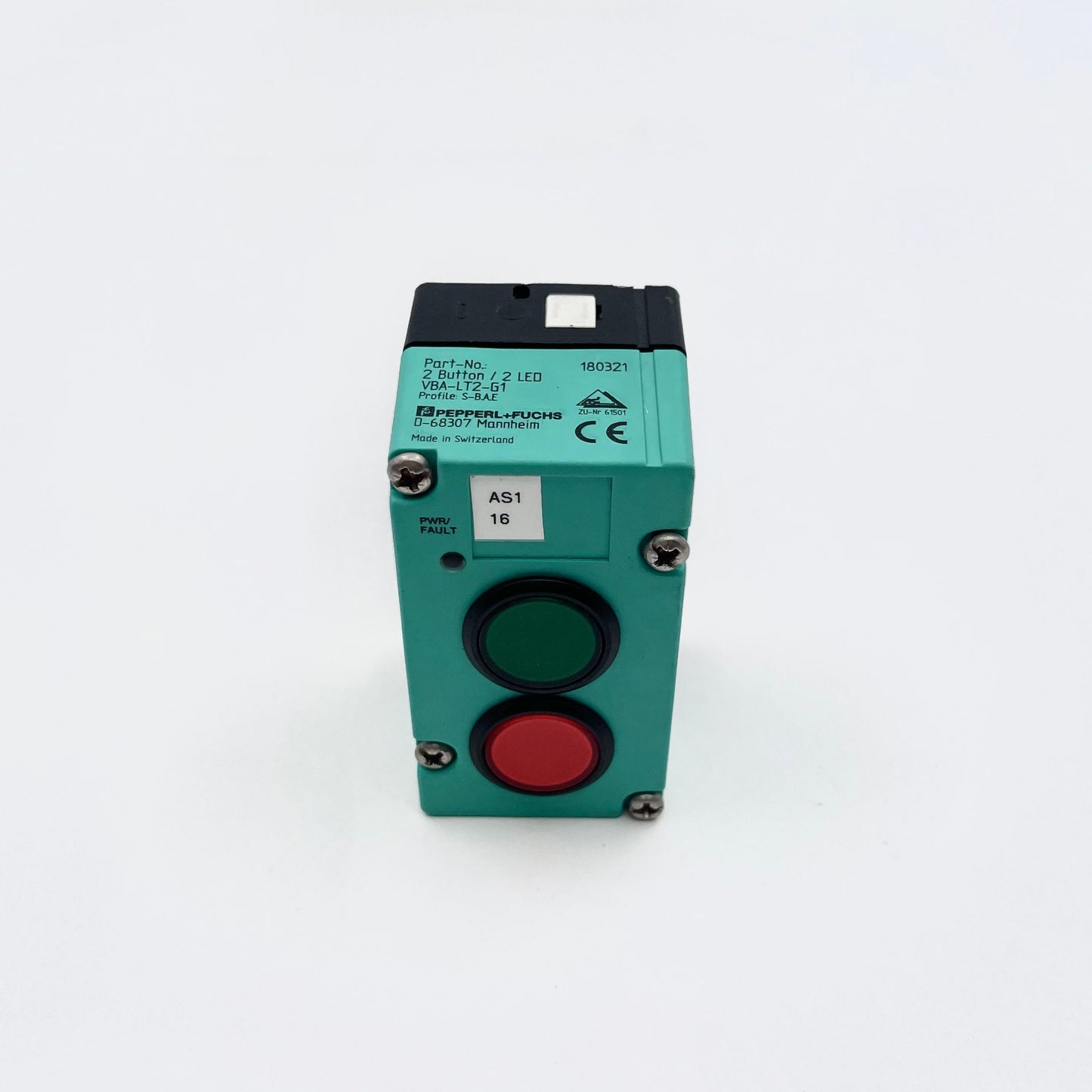

AS-Interface module, VBA-LT2-G1 / PF 180321

AS-Interface certificate
Degree of protection IP67
Flat or round cable connection (via standardized EMS base, not included with delivery)
Cable piercing method for flat cable
2 integrated illuminated pushbuttons green & red
Fault signal via LED

Details: VBA-LT2-G1 / PF 180321

Illuminated pushbutton module

Compatible Part Numbers:

180321

VBA-LT2-G1

Technical Data Sheet:

Datasheet excerpt: Technical data of VBA-LT2-G1 / PF 180321

General specifications
Node type		A/B node
AS-Interface specification		V2.11
Required gateway specification		≥ V2.1
Profile		S-B.A.E
	IO code	B
	ID code	A
	ID2 code	E
Indicators/operating means
LED PWR/FAULT		dual-LED green/red green: AS-Interface voltage, normal operation red: communication error or address 0
Button		2 integrated, protected against accidental activation, keys can be individually labelled, labeling field on the module
Electrical specifications
Rated operating voltage		26.5 ... 31.6 V from AS-Interface
Rated operating current		≤ 50 mA (LEDs on)
Protection class		III
Standard conformity
Electromagnetic compatibility		EN 50295
Degree of protection		EN 60529:2000
AS-Interface		EN 62026-2:2013
Ambient conditions
Ambient temperature		-25 ... 60 °C (-13 ... 140 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Degree of protection		IP67 according to EN 60529
Connection		cable piercing method or terminal compartment flat cable or standard round cable

Classifications

2 in stock
