BT-F130-A / PF 199856 - Actuactor
BT-F130-A / PF 199856 - Actuactor
Regular price
$60.91 NZD
Regular price
Sale price
$60.91 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

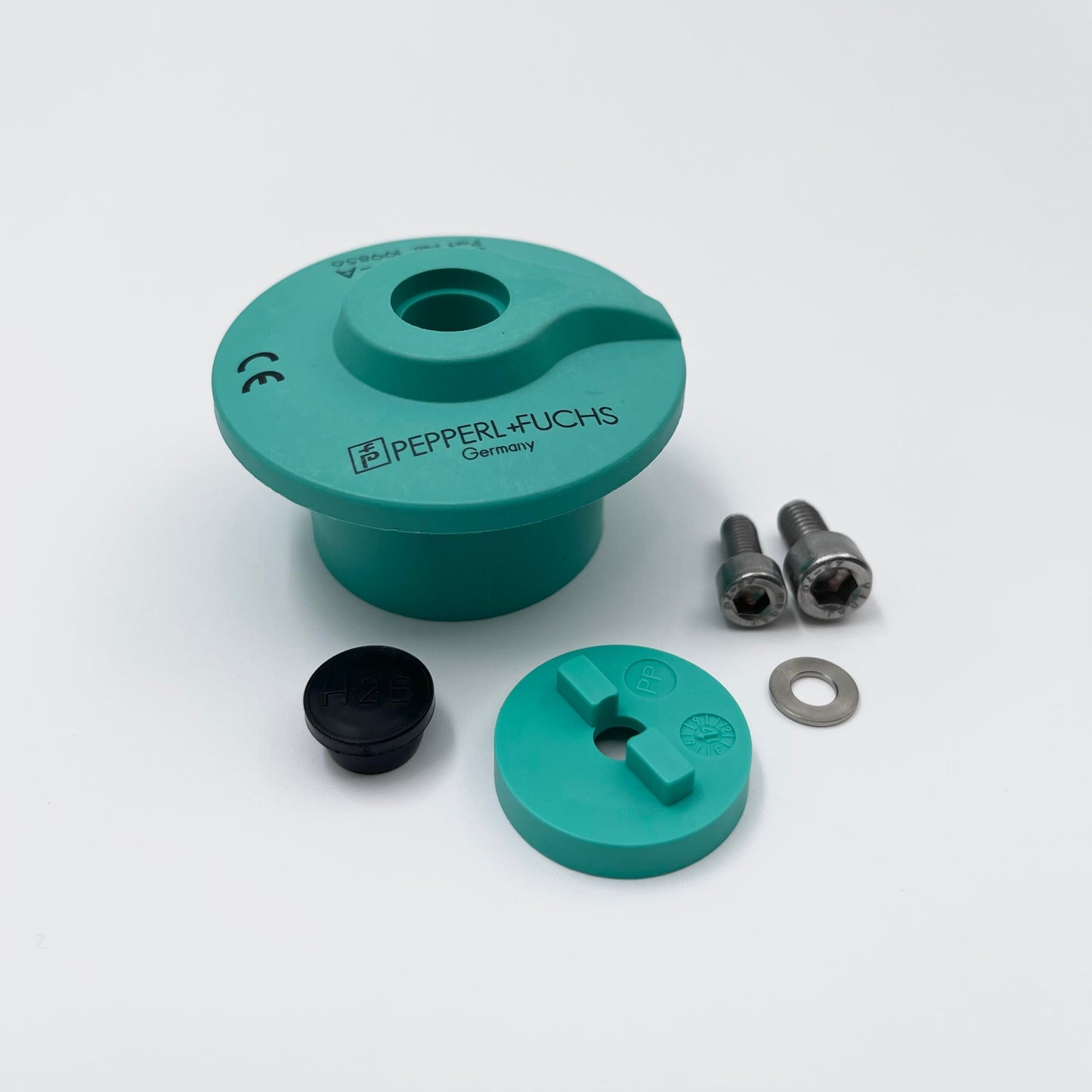

Activator, BT-F130-A / PF 199856
- Suitable for mounting on valve actuators for use in valve technology.
Details: BT-F130-A / PF 199856
Actuator for F130 series.
Compatible Part Numbers:
199856
BT-F130-A
Technical Data Sheet:
Commonly used with a:
PMI360DV-F130-IU-V15 / PF 215315 - Ind Angular Measuring System
Datasheet excerpt: Technical data of BT-F130-A / PF 199856
| Mechanical specifications | ||
|---|---|---|
| Shaft diameter | < 27.5 mm | |
| Shaft height | 20 mm | |
| Material | ||
| Housing | Mounting component: PBT |
|
| Spacer disk | PP (1 unit, 5.5 mm strong) | |
| Stopper cap | PBT (1 unit black) | |
| Mounting screw | for activator: 1.4305 / AISI 303 (1 piece M6 x 25) |
|
| Mass | 25 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274002 |
| ECLASS 12.0 | 27274002 |
| ECLASS 11.0 | 27270103 |
| ECLASS 10.0.1 | 27270103 |
| ECLASS 9.0 | 27270103 |
| ECLASS 8.0 | 27270191 |
| ECLASS 5.1 | 27270191 |
| ETIM 9.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251509 |
